Coiling machine not only has the precision mechanical components, also equipped with a powerful electric control system, it sets the electrical control, sensing technology, mechanical transmission, pneumatic device parts, such as the debug method compared with other electric processing equipment more complex and subtle. The mechanical strength of rotor parts under centrifugal force and bearing mechanical strength when speeding, under the condition of the high strength and full load test the quality of the automatic winding machine.

变压器绕线机:http://www.rxskjx.com

Transformer winding machine

常见的带骨架线圈的缠绕加工工艺，主要讲解起绕位置、漆包线规格、绕线宽度三个重要的绕线参数。

Common skeleton coil winding process, the covers up around the place, enameled wire specification, winding process width of three important parameters.

一、 起绕位置如何设定

A, how to set up around the position

简单的说就是在骨架上开始绕线的起点，这个位置与线圈的出头及线圈类型有紧密的联系，通常可以通过设备控制系统自带的测量功能来测的相关起绕位置的具体数值；操作人员也可以采用人工方式测量，以固定点作为参考点使用尺具实际测量，设定该点时注意线圈的缠绕方向。

Simple said is the starting point of start winding on the skeleton, the position and the coil head and coil type are closely linked, usually by equipment control system comes to the features of the measuring test of related position around the specific number; Operators can also be measured by artificial means, in fixed point used as a reference point feet with actual measurement, set the point attention to coil winding direction.

二、漆包线规格的设定

Second, the setting of enameled wire specifications

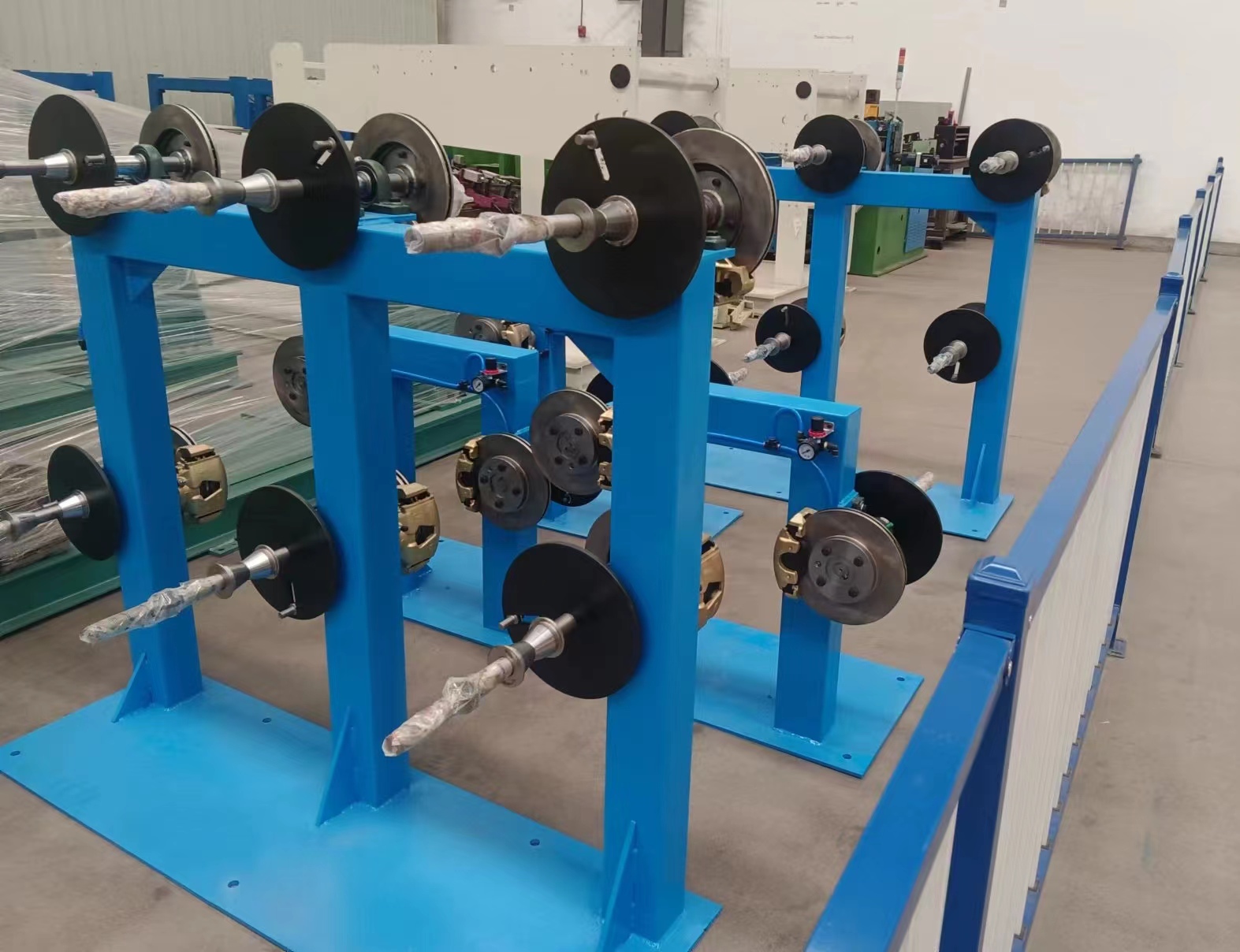

我们常见的漆包线有不同的线径，漆包线规格设定是否正确直接会影响到排线的效果，使用不同材质的漆包线需要加不同的线径修正值，铜线不易被拉细，其修正值加0.02左右,铝线在经过绕线设备的张力及过线装置后容易被拉伸,其修正值幅度较大0.02-0.2之间都是允许的。

Our common have different wire enameled wire, enameled wire specifications set correctly will directly affect the effect of row line, using different materials of the enameled wire need to add different wire diameter revised, copper wire is not easy to be fine, the revised of around 0.02, aluminium wire tension during the winding equipment and easy to stretch after line device, and the revised larger extent between 0.02 to 0.2 are allowed.

三、绕线宽度的设定

Third, set the width of winding

绕线宽度的理解就是从开始绕线的位置到绕线结束位置之间的距离，通常该值直接反映骨架需要绕线的长度，变压器绕线机设定时需要考虑所使用骨架的微小变形量对绕线宽度的影响，应采用综合测量的方法取最小值作为绕线宽度。

The understanding of the winding width is from start winding process to the position of the distance between the end position, usually the value directly reflects the skeleton need the length of the winding, transformer winding machine need to be considered when setting used tiny deformation will influence of the width of the winding frame, should adopt comprehensive measurement method takes the minimum as the winding width.
